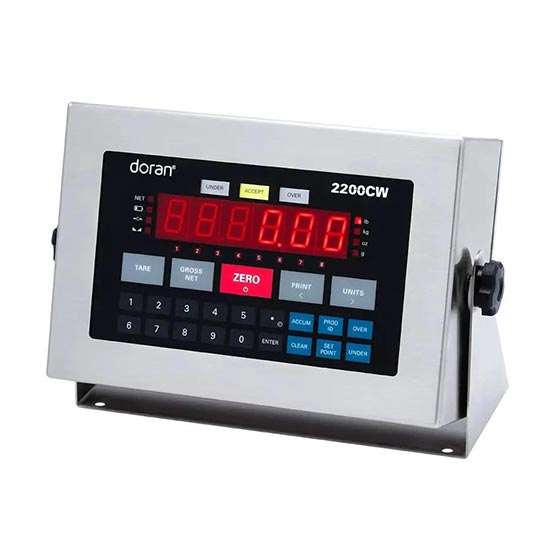

Description
Checkweighing for washdown and food production
- IP69K-rated 304 stainless steel enclosure
- Bright red, six-digit LED display with 0.8-inch-high digits
- Memory for up to 800 Product IDs and 200 User IDs
- Two bidirectional RS-232 ports included as standard
- Swivel mounting bracket included
- NTEP Class III and Measurement Canada approved
Typical applications
- Checkweighing and weight-limit verification
- General industrial weighing
- Accumulation and piece or batch tracking
- Food manufacturing and washdown installations
Doran 2200CW specifications
| Manufacturer | Doran Scales |
|---|---|
| Model / part number | 2200CW |
| Price | $890.00 |
| Enclosure | 304 stainless steel; IP69K rating |
| Dimensions | 10 in W × 6.75 in H × 3.5 in D |
| Display | Six-digit red LED; 0.8 in digit height |
| Weighing units | lb, kg, oz, g, and lb:oz |
| Resolution range | 200d to 50,000d |
| Load cell capacity | Up to eight 350 Ω load cells |
| Load cell excitation | 5 VDC |
| Standard communications | Two bidirectional hard-wired RS-232 ports |
| Optional communications | Ethernet, Wi-Fi 802.11b/g, Bluetooth 4.0 (Class 3, SPP), USB 2.0 (CDC), or 4–20 mA; options require accessories |
| Digital I/O | Two remote switch inputs and eight configurable outputs |
| Power | 100–240 VAC, 50/60 Hz, standard US power cord |
| Optional power | Rechargeable battery, ordered separately |
| Approvals | NTEP Class III, CC 06-101; Measurement Canada, certificate AM-5617 |
| Included mounting | Swivel mounting bracket |
| Shipping weight listed | 9 lb |
Specifications are transcribed from the supplied product information and Doran 2200CW Technical Manual, revision 5.7. Optional battery and communications accessories are not included unless selected with the order. Confirm the needed configuration before purchase.
Frequently asked questions
What is the Doran 2200CW used for?
The Doran 2200CW is a digital weighing indicator designed for general weighing, three- or five-zone checkweighing, and accumulation. Its Under, Accept, and Over annunciators show how a measured weight compares with configured limits.
Is the Doran 2200CW suitable for washdown environments?
It has an IP69K-rated 304 stainless steel enclosure and a touch panel described as moisture resistant. Follow the manufacturer’s installation and cleaning instructions in the technical manual; the manual cautions against immersing the scale.
What communications are included?
Two bidirectional hard-wired RS-232 ports are standard. Ethernet, Wi-Fi 802.11b/g, Bluetooth 4.0, USB 2.0, and 4–20 mA communications are optional and require the appropriate accessories.
Does the Doran 2200CW include a rechargeable battery?
No. The rechargeable battery is optional and must be ordered separately. Standard power is 100–240 VAC at 50/60 Hz.
How many load cells can the 2200CW support?
The supplied specifications state that it can support up to eight 350-ohm load cells and provides 5 VDC load-cell excitation. Confirm compatibility with the load cells and weighing system before installation.
What approvals does the 2200CW have?
The supplied product information lists NTEP Class III, CC 06-101, and Measurement Canada approval, certificate AM-5617.
What is included with the indicator?
The supplied product information lists a swivel mounting bracket and a standard US power cord. Optional battery, communications, remote switch, and software items must be ordered separately when needed.
Where can I find setup and operating instructions?
The Doran 2200CW Technical Manual is embedded below. It covers operation, checkweighing modes, Product and User IDs, installation, calibration, communications, and troubleshooting.
Doran 2200CW Technical Manual
View the Doran 2200CW Series Technical Manual (MAN347, revision 5.7) below, or open or download the PDF manual.
