H9D Zemic Tank Beam Load Cells

H9D Zemic

Price range: $0.00 through $1,300.00

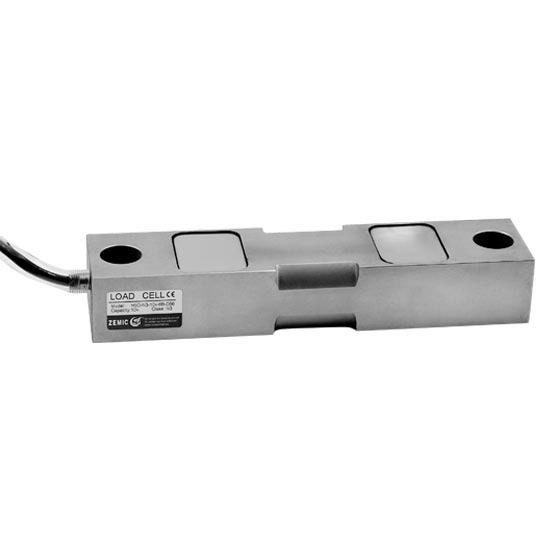

H9D Zemic IP67 Dual Shear Beam Load Cell

H9D Zemic Available in 1,000 lb to 75,000 lb capacities for truck scales,
track scales, tank scales and other heavy weighing systems.

Key specifications

Construction Nickel-plated alloy steel
Sensor type Dual shear beam
Ingress protection IP67
Applications Truck scales, track scales and heavy weighing devices
Comparable models Revere Transducers 5203, Celtron DSR, Sensortronics 65016, Coti CG-16, Artech 70510, Rice Lake RL75016 and Vishay DSR

H9D Zemic capacity and price comparison

Capacity Model / SKU Price (USD) IP rating
1,000 lb H9D-N10-1K-6B $502.00 IP67
1,500 lb H9D-N10-1.5K-6B $502.00 IP67
2,000 lb H9D-N10-2K-6B $502.00 IP67
2,500 lb H9D-N10-2.5K-6B $502.00 IP67
4,000 lb H9D-N10-4K-6B $502.00 IP67
5,000 lb H9D-N10-5K-6B $502.00 IP67
10,000 lb H9D-N10-10K-6B $502.00 IP67
15,000 lb H9D-N10-15K-6B $502.00 IP67
20,000 lb H9D-N10-20K-6B $502.00 IP67
25,000 lb H9D-N10-25K-6B $502.00 IP67
35,000 lb H9D-N10-35K-6B $502.00 IP67
50,000 lb H9D-N10-50K-6B $1,300.00 IP67
75,000 lb H9D-N10-75K-6B $1,300.00 IP67

Prices and availability must be kept synchronized with the live product feed and the page. Verify dimensions, electrical specifications, approvals and interchangeability against the current manufacturer datasheet before publication.

SKU: H9D Zemic Load Cell Category: Tag: Brand:

Description

Technical specifications

Specification Unit C2 C3 C4 A5M B10M
Capacity Klb 1 / 1.5 / 2 / 2.5 / 4 / 5 / 10 / 15 / 20 / 25 / 35 / 50 / 75
Accuracy – C2 C3 C4 A5M B10M
Approvals – OIML R60 C3 OIML R60 C4 III 5000 Multiple III 10000 Multiple
Maximum number of verification intervals nmax 2000 3000 4000 5000 10000
Minimum load cell verification interval vmin Emax/5000 Emax/10000 Emax/14000 Emax/15000 Emax/10000
Combined error %FS ≤±0.030 ≤±0.020 ≤±0.018 ≤±0.026 ≤±0.050
Creep %FS/30 min ≤±0.024 ≤±0.016 ≤±0.012 ≤±0.017 ≤±0.040
Temperature effect on sensitivity %FS/10°C ≤±0.017 ≤±0.011 ≤±0.009 ≤±0.013 ≤±0.040
Temperature effect on zero %FS/10°C ≤±0.023 ≤±0.015 ≤±0.010 ≤±0.014 ≤±0.020
Output sensitivity mV/V 3.0 ± 0.008
Input resistance Ω 700 ± 7
Output resistance Ω 703 ± 4
Insulation resistance MΩ ≥5000 (50 VDC)
Zero balance %FS 1.0
Temperature, compensated °C -10 to +40
Temperature, operating °C -35 to +65
Excitation, recommended V 5 to 12 DC
Excitation, maximum V 18 DC
Safe overload %FS 150
Ultimate overload %FS 300

The values above were transcribed from the supplied H9D-3 datasheet. Confirm the exact accuracy class, approvals and current manufacturer specifications for the selected SKU before publication.

Dimensions and wiring

Dimensions by capacity (mm / inch)

Capacity (Klb) L L1 L2 ΦD Φd H W
1 to 5 190.5 / 7.5 158.75 / 6.25 30.48 / 1.2 31.5 / 1.24 12.7 / 0.5 30.99 / 1.22 30.99 / 1.22
10 to 35 222.25 / 8.75 190.5 / 7.5 41.15 / 1.62 50.8 / 2.0 20.57 / 0.81 49.15 / 1.94 36.45 / 1.44
50 to 75 342.9 / 13.5 292.1 / 11.5 82.55 / 3.25 75.95 / 2.99 33.32 / 1.31 74.68 / 2.94 61.98 / 2.44

Wiring

Wire function Color
Input (+) Red
Output (-) White
Input (-) Black
Output (+) Green

Cable: shielded, 4-conductor cable
Cable diameter: Φ5 mm
Standard cable length: 6 m

Verify wiring, connector termination and cable length against the current datasheet and the load cell label before installation.

Download  and/or print for more details  (PDF)
Original H9D manufacturer datasheet.

Compatibility and replacement guidance

The H9D family may be considered as a replacement reference for Revere Transducers 5203, Celtron DSR, Sensortronics 65016, Coti CG-16, Artech 70510, Rice Lake RL75016 and Vishay DSR. Similar appearance or capacity does not prove interchangeability. Confirm dimensions, mounting pattern, load direction, rated output, excitation, cable configuration, temperature range, sealing, approvals and calibration requirements before ordering.

Frequently asked questions

Which H9D capacity should I select?

Select the capacity that covers the expected load while preserving the weighing system’s required resolution and safety margin. For a truck or track scale, select based on the complete scale design and capacity per load cell—not only the vehicle’s gross weight.

Is the H9D suitable for outdoor scales?

The supplied product information identifies the H9D as IP67 and suitable for truck scales, track scales and other heavy weighing devices. Confirm the complete installation’s environmental exposure, cable routing, junction boxes and local requirements against the current datasheet.

Is the H9D a direct replacement for the comparable models?

It may be a comparison candidate, but a direct replacement requires a documented mechanical, electrical, environmental and calibration match. Ask a qualified scale technician to verify the original model and installation before substituting a load cell.

———————————————————————-

Product information is provided for purchasing and engineering review. It does not replace the manufacturer’s datasheet, installation manual, a qualified scale technician or legal-metrology advice.



Additional information

Weight 10-15 lbs
H9D Zemic Load Cells

1,000 lb – H9D-N10-1K-6B, 1,500 lb – H9D-N10-1.5K-6B, 2,000 lb – H9D-N10-2K-6B, 2,500 lb – H9D-N10-2.5K-6B, 4,000 lb – H9D-N10-4K-6B, 5,000 lb – H9D-N10-5K-6B, 10,000 lb – H9D-N10-10K-6B, 15,000 lb – H9D-N10-15K-6B, 20,000 lb – H9D-N10-20K-6B, 25,000 lb – H9D-N10-25K-6B, 35,000 lb – H9D-N10-35K-6B, 50,000 lb – H9D-N10-50K-6B, 75,000 lb – H9D-N10-75K-6B
